4K Dental Models
4K-CNT-T7

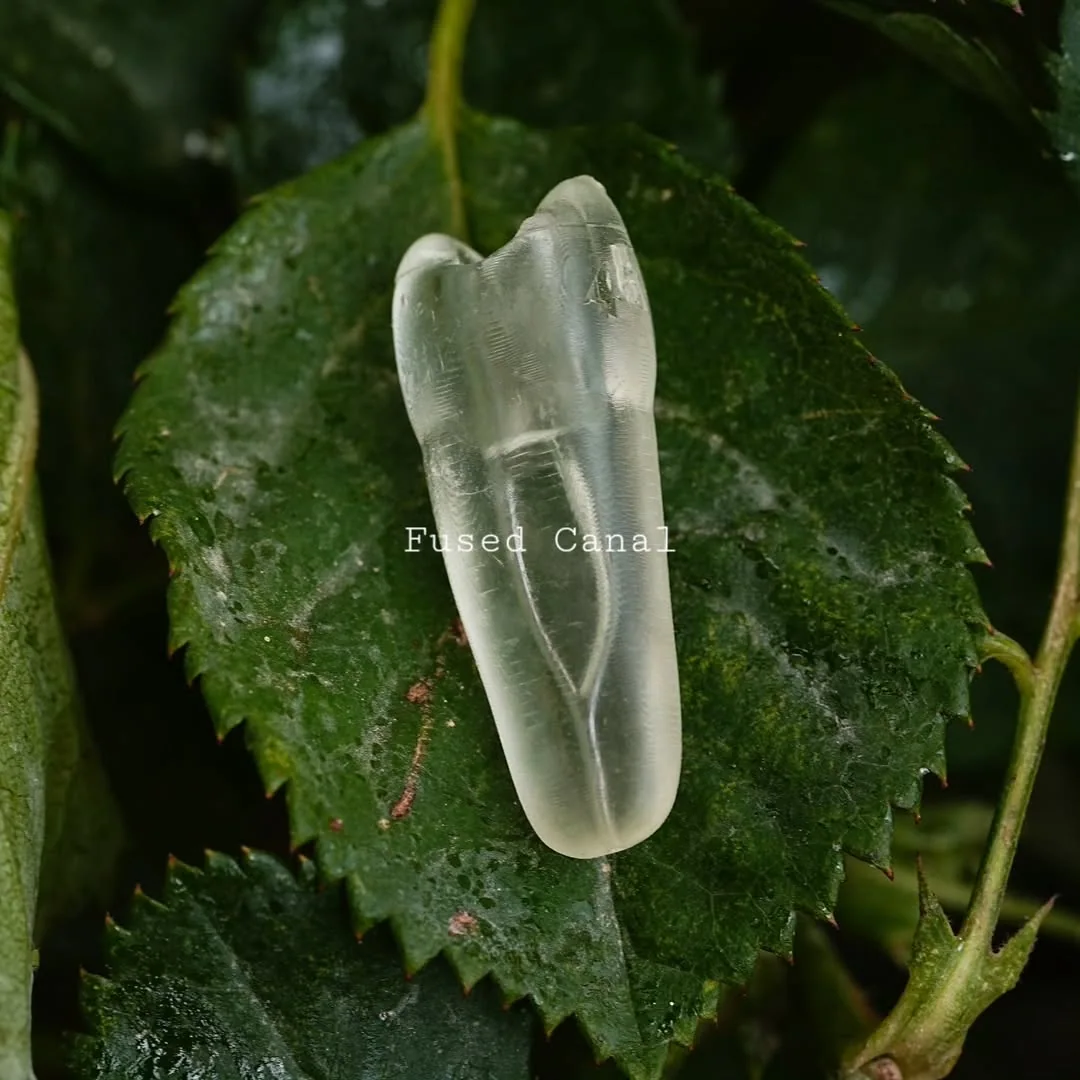

Type 2 — Fused Canal
Type 2 — Fused Canal · 4K-CNT-T2

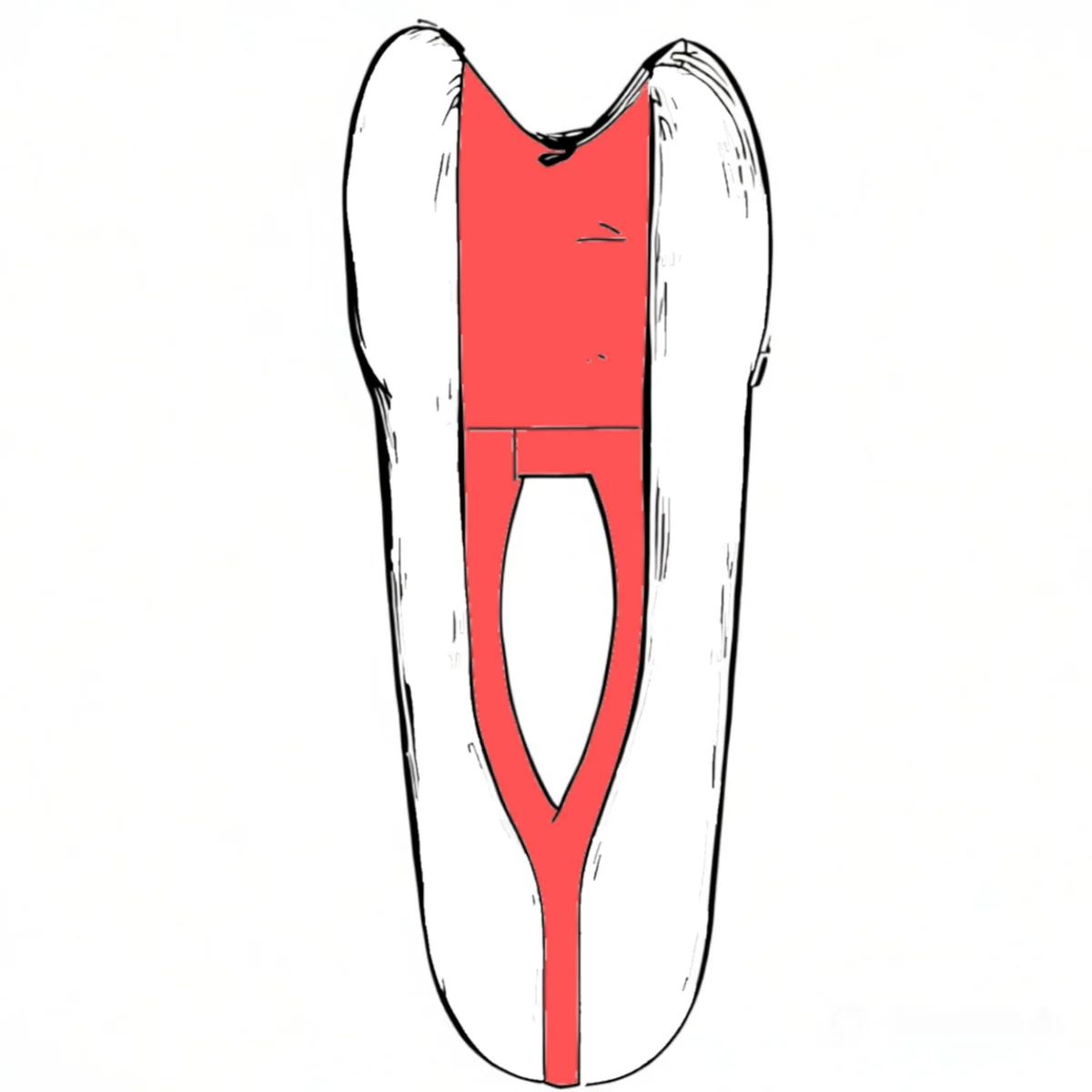

Two separate canals merge into one before the apex. Teaches canal tracking from entry to fusion point and adapting obturation to the merged segment.
AdvancedType IIVertucci
Prices are not published — quoting depends on quantity and anatomy level.
Why this case matters
Fused (Vertucci Type II) canals are the most common "hidden merge" in molars and premolars. Missing the fusion point leads to over-shaping and strip risk.
Training outcomes
- Canal fusion tracking technique
- Working length in fused anatomy
- Obturation adaptation at merge point
Common mistakes this model helps you avoid
- Shaping both canals to the apex independently past the fusion
- Two separate apical stops where one exists
- Over-tapered post-fusion preparation
- Not verifying fusion location on films
Suggested training protocol
- Size #10 patency in both orifices; recognise when one file path joins the other
- Shape both to fusion, then continue as single canal
- Single apical stop below fusion
- Oval-adapted obturation at merge zone
What a successful exercise looks like
- Single apical seal below fusion
- Preserved wall thickness
- No voids at the merge zone
Request a quote
Send us your programme or seat count and we will suggest the right models.
